Automatic Cupping Tester
Automatic Cupping Tester is a BYK-Gardner testing instrument used to evaluate elongation, deformability, flexibility, and adhesion of coatings on metal substrates. This instrument helps users assess the ability of coatings, lacquers, varnishes, or protective coatings to withstand gradual deformation without cracking, peeling, or losing adhesion.

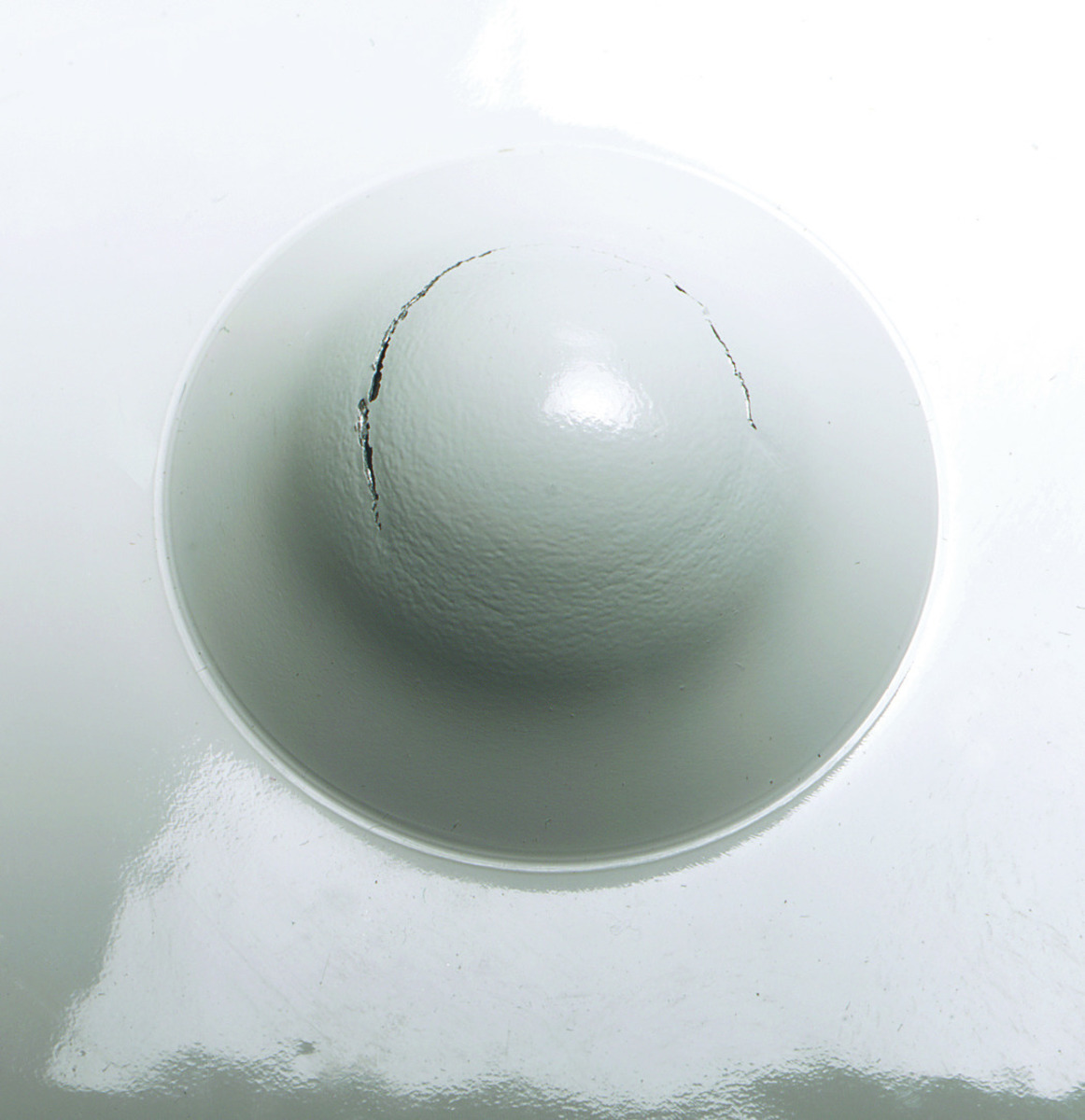

In a cupping test, a coated metal panel is gradually pressed using a punch until the coating surface deforms. Automatic Cupping Tester uses an electro-hydraulic drive to generate stable and repeatable cupping movement, delivering more consistent results compared with manual methods. During the test, users can observe when cracking, detachment, or film damage begins to appear.

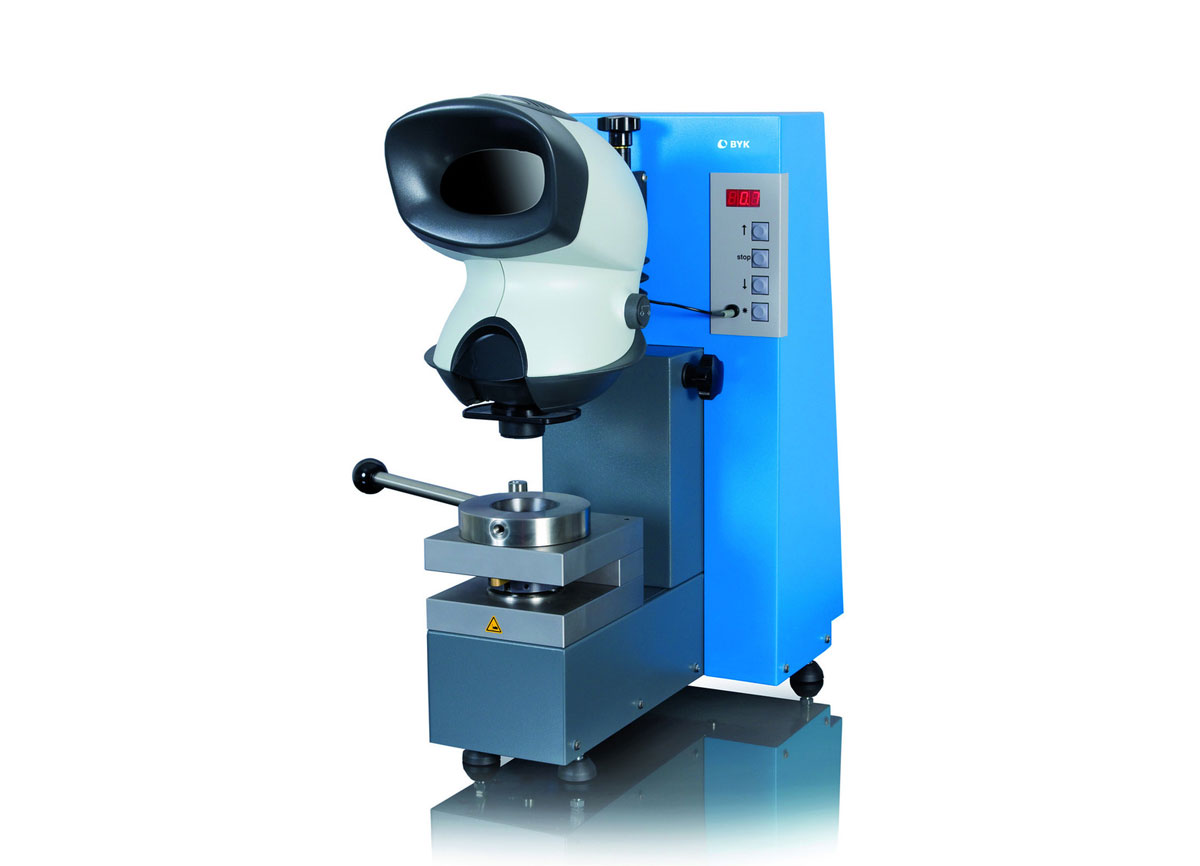

Automatic Cupping Tester features a C-opening that accepts both large and small test panels, supports test panels up to 1.5 mm thick, provides a uniform cupping speed of 0.2 mm/sec, and includes a digital display with 0.1 mm resolution. This instrument is suitable for quality control, coating R&D, supplier approval, batch comparison, formulation evaluation, and process validation requiring objective, repeatable, and ISO 1520-compliant coating deformability evaluation.
| Applications | Product | Product Information | Information Link |
| Elongation testing, deformability testing, cupping test, Erichsen test, coating flexibility evaluation, coating adhesion under deformation, cracking evaluation, detachment inspection, lacquers, paints, varnishes, protective coatings, automotive coatings, industrial coatings, powder coatings, coated metal panels, single-layer coating systems, multi-layer coating systems, laboratory quality control, R&D testing, supplier approval, batch comparison, formulation evaluation, process validation, and ISO 1520 testing | Automatic Cupping Tester | BYK-Gardner instrument for testing elongation and deformability of single-layer and multi-layer coating systems on metal substrates. Uses an electro-hydraulic drive for highly reproducible results, C-opening for large and small panels, eccentric clamping ring, uniform cupping speed of 0.2 mm/sec, 0.1 mm digital display resolution, and supports cupping test / Erichsen test according to ISO 1520. | View Information |
