Wave scan orange peel

BYK-Gardner wave-scan is the objective eye for a brilliant finish — analyzing surface waviness intensity with 5 wavelength ranges (0.1 mm to 30 mm) and evaluating surface brilliance and DOI (distinctness of image). The results form a "structure spectrum" that helps analyze and optimize surface quality based on material and process parameters — from substrate to top coat, from film thickness to leveling. PT Jaya Warindo Abadi (JWA) is an authorized distributor of the wave-scan family across Indonesia.

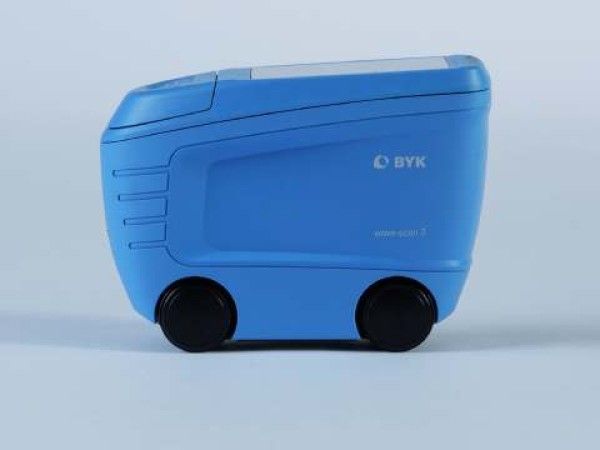

wave-scan 3 family features an extra-large color touch display with capacitive technology for smartphone-like intuitive operation. The fastest chip ever calculates complex waviness scales instantly — speeding up measurement time. High correlation to visual perception and excellent agreement with previous wave-scan models. Intuitive menu navigation includes Quick check (measure without saving), Measure (use standards with Pass/Fail limits), and Organizer (customized sampling procedure for car bodies). Data can be displayed for Pass/Fail judgement in color for the first time.

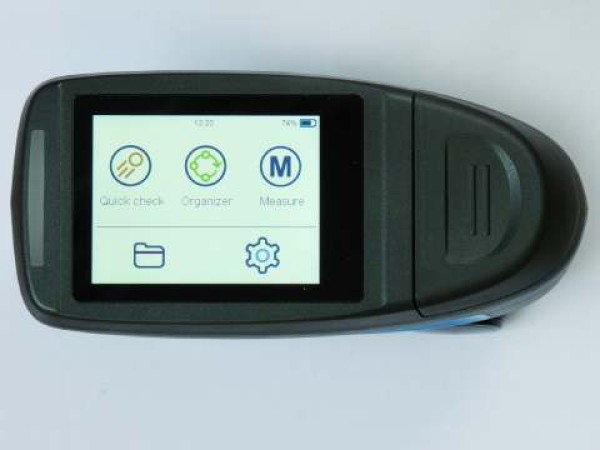

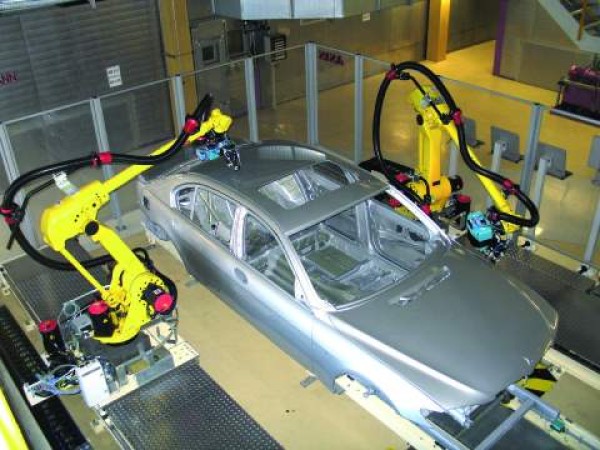

wave-scan dual helps analyze appearance problems by identifying which substrate layer influences final appearance — reducing trouble shooting time. micro-wave-scan fits in the palm of your hand for orange peel and DOI measurement on very curved components or small add-on parts (fuel doors, mirror housings, door handles, decorative trim, motorcycle parts) — DOI measurement possible without scanning. wave-scan 3 ROBOTIC enables automated appearance control for Industry 4.0 — mounted on a robotic arm measuring without touching the surface, ensuring measurements on the same area with high sampling rates, enabling leading-edge analysis with AI algorithms.

All wave-scan models include a docking station for charging and data transfer to smart-chart software — professional analysis, documentation, and data management. smart-chart features powerful standard management with Pass/Fail tolerances, organizer for clear sample identification, trend reports over time, drill-in function for data history (last 20 readings), and dynamic print layout for custom reports. Wireless data transfer with Wi-Fi function available on request.
