Wire-wound rods 200 mm
Wire-wound rods 200 mm are BYK-Gardner applicator rods used to create thin, uniform, and repeatable film drawdowns of coatings, paints, inks, varnishes, adhesives, and other liquid materials. Also known as Mayer Rods, these products are highly suitable for R&D laboratories, quality control, formulation comparison, color matching, and coating performance evaluation.
In paint application testing, consistent wet film thickness is critical because it can affect the evaluation of color, gloss, opacity, hiding power, leveling, flow, drying behavior, and appearance. Wire-wound rods work by allowing material to flow through the grooves between the wire windings on the rod, producing a more controlled and uniform wet film across the application area.

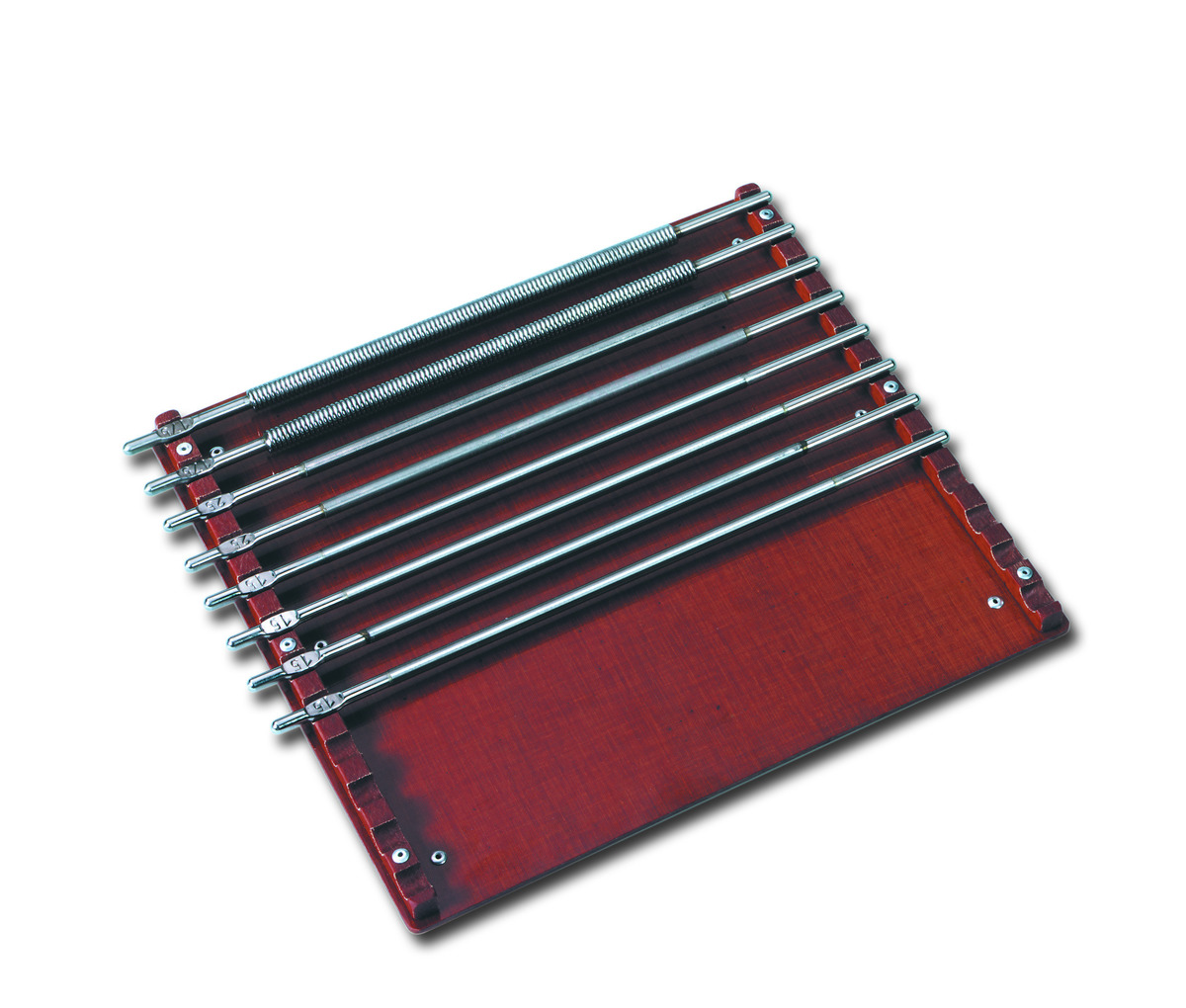

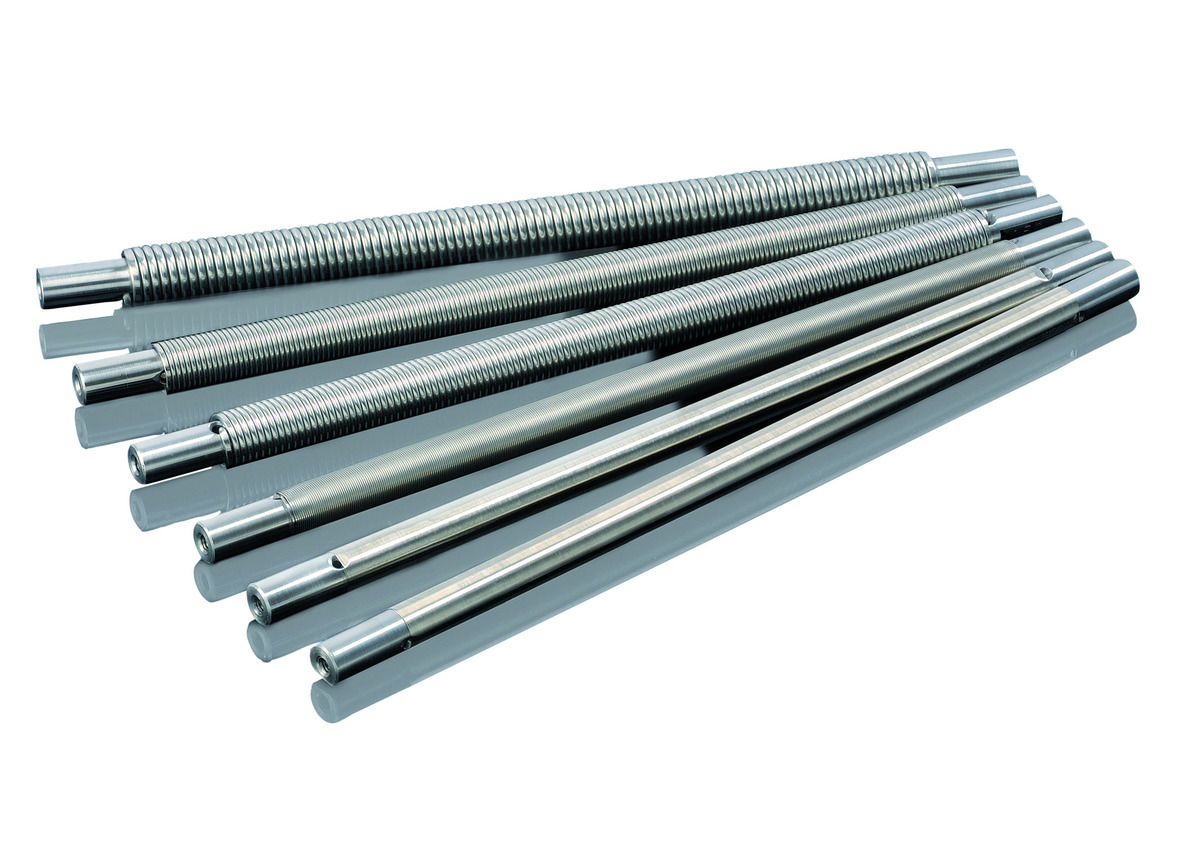

Wire-wound rods 200 mm provide a 200 mm film width and are made from 300 series stainless steel for durability and easy cleaning. Each rod has a 10 mm diameter, approximately 240 mm total length, and 20 mm grip space on both ends for easier handling during drawdown. This product is available in various wet film thickness options and can be used manually or with an automatic film applicator for paints, inks, coatings, adhesives, paper coatings, plastic films, and printing materials.
| Applications | Product | Product Information | Information Link |
| Paint application, film drawdown, thin film application, wet film thickness control, coating application, ink application, varnish application, adhesive application, paper coating, plastic film coating, printing material testing, color matching, opacity testing, hiding power evaluation, gloss evaluation, leveling evaluation, flow behavior testing, coating R&D, laboratory quality control, formulation comparison, batch comparison, and ASTM D4147 testing | Wire-wound rods 200 mm | BYK-Gardner 300 series stainless steel wire-wound rods for creating uniform drawdowns with a 200 mm film width. Each rod has a 10 mm diameter, approximately 240 mm total length, 20 mm grip space on both ends, and is available in various wet film thickness options. Suitable for thin film application of paints, inks, coatings, varnishes, adhesives, paper coatings, plastic films, and printing materials. | View Information |
