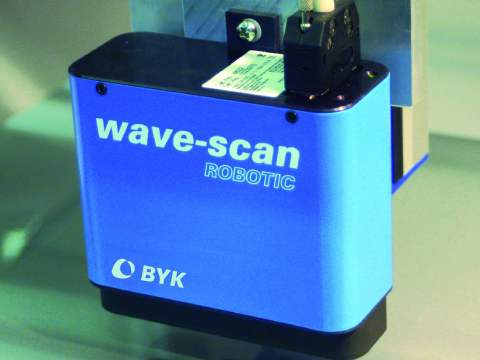

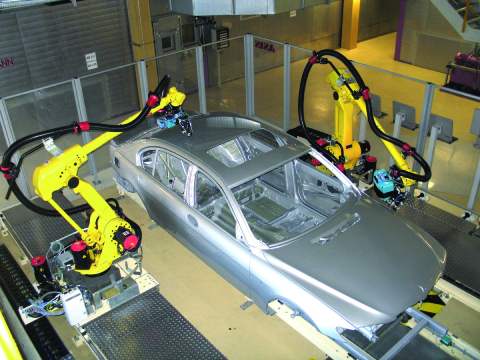

BYK-Gardner wave-scan ROBOTIC is an automated, non-contact orange peel meter designed for Industry 4.0 quality control in paint shops. Mounted on a robotic arm, it measures without touching the surface — ensuring measurements on the same area with high sampling rates. The robotic system collects representative QC data that can be used to analyze appearance-influencing parameters by connecting material and process variables, enabling leading-edge analysis methods with AI algorithms. PT Jaya Warindo Abadi is an authorized distributor of the wave-scan ROBOTIC across Indonesia.
Key features: automatic, non-contact measurement at the production line; distance to surface 15 ± 2 mm; angle to perpendicular ± 2°; scan speed 50 to 150 mm/sec; suitable for flat and curved surfaces (radius greater than 50 cm); small and lightweight sensor for easy robotic integration; classical LW, SW, and customer-specific scales; structure spectrum to analyze appearance changes for optimization; dullness and DOI measurement independent of the paint system; smart-chart software for professional data analysis and documentation.
Cat No. 4822 — wave-scan ROBOTIC Orange Peel Meter
Product Specifications
| Applications | Product | Product Information | Tautan Informasi |
|---|---|---|---|
| Automotive OEM paint shops (high-volume production lines), Automated quality control for car bodies (body panels, clearcoats), Robotic integration for Industry 4.0 manufacturing, Non-contact measurement for scratch-sensitive surfaces, Production line appearance monitoring, Quality control at high sampling rates, Continuous process optimization using AI algorithms, Closed-loop appearance control systems | wave-scan ROBOTIC Cat No. 4822 |
Measurements: Orange peel, Waviness, DOI (Distinctness of Image) Wavelength ranges: 5 ranges (0.1 mm - 30 mm) Measurement type: Non-contact, automated Distance to surface: 15 ± 2 mm Angle tolerance: ± 2° to perpendicular Scan speed: 50 to 150 mm/sec Surface compatibility: Flat and curved (radius > 50 cm) Sensor design: Small, lightweight Scales: Classical LW, SW, customer-specific Features: Structure spectrum, dullness & DOI Software: smart-chart for data analysis and documentation |
wave-scan ROBOTIC Technical Details |
Contact PT Jaya Warindo Abadi for product demonstrations, technical consultation, or quotations.
