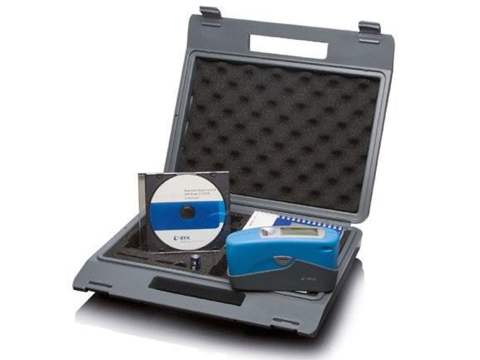

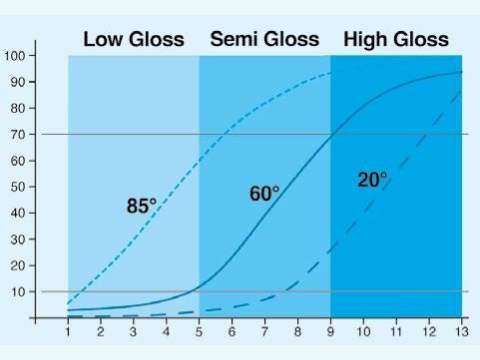

BYK-Gardner micro-TRI-gloss is a three-angle glossmeter that combines 20°, 60°, and 85° geometries in one portable device. International standards specify three measurement geometries to cover the entire range from matte to high gloss — each geometry optimized for a specific gloss range. With micro-TRI-gloss, you always have the specified angle on hand and can quickly recognize quality variations across all gloss levels. PT Jaya Warindo Abadi (JWA) is an authorized distributor of the micro-TRI-gloss series across Indonesia.

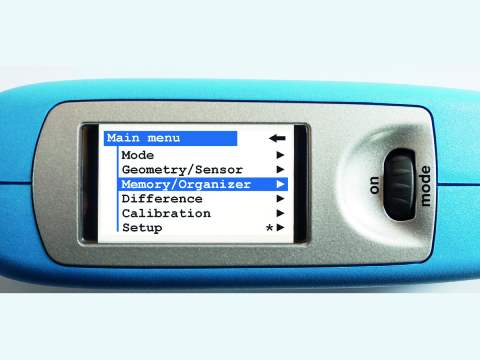

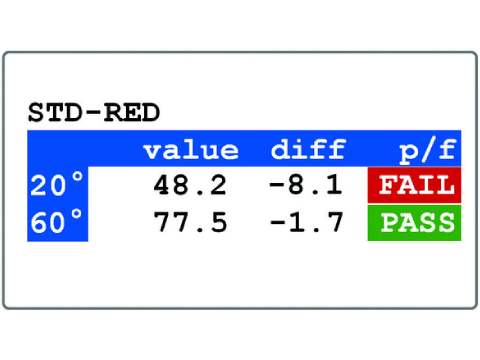

Key features: all three angles measure at the same location with results displayed simultaneously; 20° for high-gloss surfaces, 60° for semi-gloss surfaces (universal angle), 85° for low-gloss/matte surfaces; suitable for any material — paint, plastic, or mirror-like metals; intelligent gloss measurement with smart communication; excellent repeatability and inter-instrument agreement; intelligent auto-diagnosis (optics cleanliness check with instant feedback); brilliant color display; statistics, Pass/Fail analysis, and memory functions; continuous mode for checking uniformity over large areas; smart-chart software for instant QC reports with trend graph and Pass/Fail limits.
Available models:
Cat No. 4563 — micro-TRI-gloss (20°/60°/85° in one device)
Cat No. 4564 — micro-TRI-gloss µ (adds dual Fe/NFe film thickness sensor for simultaneous gloss and thickness measurement on steel and aluminum — ideal for field checks with only one instrument)
Cat No. 4566 — micro-TRI-gloss S (S-class for superior performance on matte finishes, guaranteeing gloss harmony)
For ultra-small parts, micro-gloss XS (2x4 mm ultra-small measuring area) and micro-gloss ROBOTIC (contact or non-contact automated gloss measurement for Industry 4.0) are also available.
Contact PT Jayawarinda (JWA) for product demonstrations, technical consultation, or quotations.
