Falling Dart Impact Tester
Falling Dart Impact Tester is a BYK-Gardner testing instrument used to evaluate impact resistance and mechanical properties of packaging materials such as plastic films, laminates, paper, and flexible sheets. This instrument helps users determine a material’s ability to resist impact from a free-falling dart before failure, rupture, or sample damage occurs.
In falling dart impact testing, the sample is secured in a clamping device, then a dart is released from a specified height onto the sample surface. The applied impact energy is used to evaluate material strength against impact. This method is highly important to ensure that films, laminates, or packaging materials have sufficient durability during handling, transportation, converting, and end-use applications.

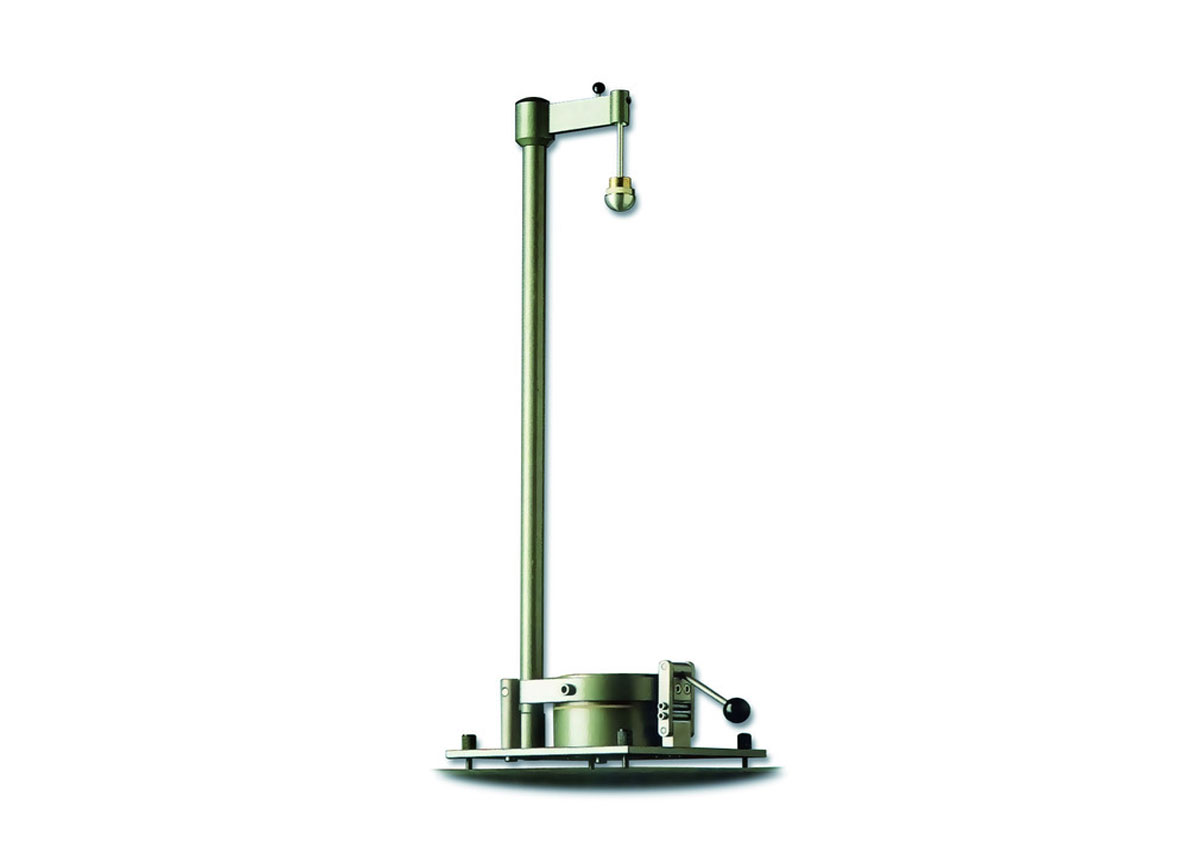

Falling Dart Impact Tester includes a base with sample clamping device, rubber gasket to prevent sample slippage, vertical column, release mechanism, dart, nylon clamp, and additional weights to adjust testing requirements. This product is suitable for quality control, packaging R&D, supplier approval, batch comparison, material development, and impact strength evaluation of plastic films, laminates, paper, and flexible packaging according to ASTM D1709 and ISO 7765-1.
| Applications | Product | Product Information | Information Link |
| Falling dart impact testing, impact resistance testing, plastic film testing, laminate testing, paper testing, flexible packaging testing, packaging material evaluation, rupture resistance, puncture resistance, mechanical properties testing, quality control, R&D testing, supplier approval, batch comparison, material development, ASTM D1709, and ISO 7765-1 | Falling Dart Impact Tester | BYK-Gardner instrument for determining the impact energy required to cause sample failure in packaging materials using a free-falling dart. Used to test mechanical properties and impact resistance of plastic films, laminates, paper, and flexible packaging. Equipped with sample clamping device, rubber gasket, vertical column, release mechanism, dart, nylon clamp, and additional weights to support testing according to ASTM D1709 and ISO 7765-1. | View Information |
