DIN/ISO Dip Cups
DIN/ISO Dip Cups are BYK-Gardner viscosity cups used to measure the viscosity of paints, coatings, inks, varnishes, lacquers, adhesives, resins, and other liquid materials quickly and practically. These tools help users evaluate material flow behavior based on flow time or efflux time, making them suitable for quality control, production inspection, batch comparison, and checking material readiness before application.
In testing with DIN/ISO Dip Cups, the cup is immersed into the liquid sample until the upper rim is below the liquid surface, then lifted vertically while the stopwatch is started. The time is stopped when the liquid stream from the orifice breaks. The average value from several measurements can be used as the efflux time to evaluate viscosity consistency.

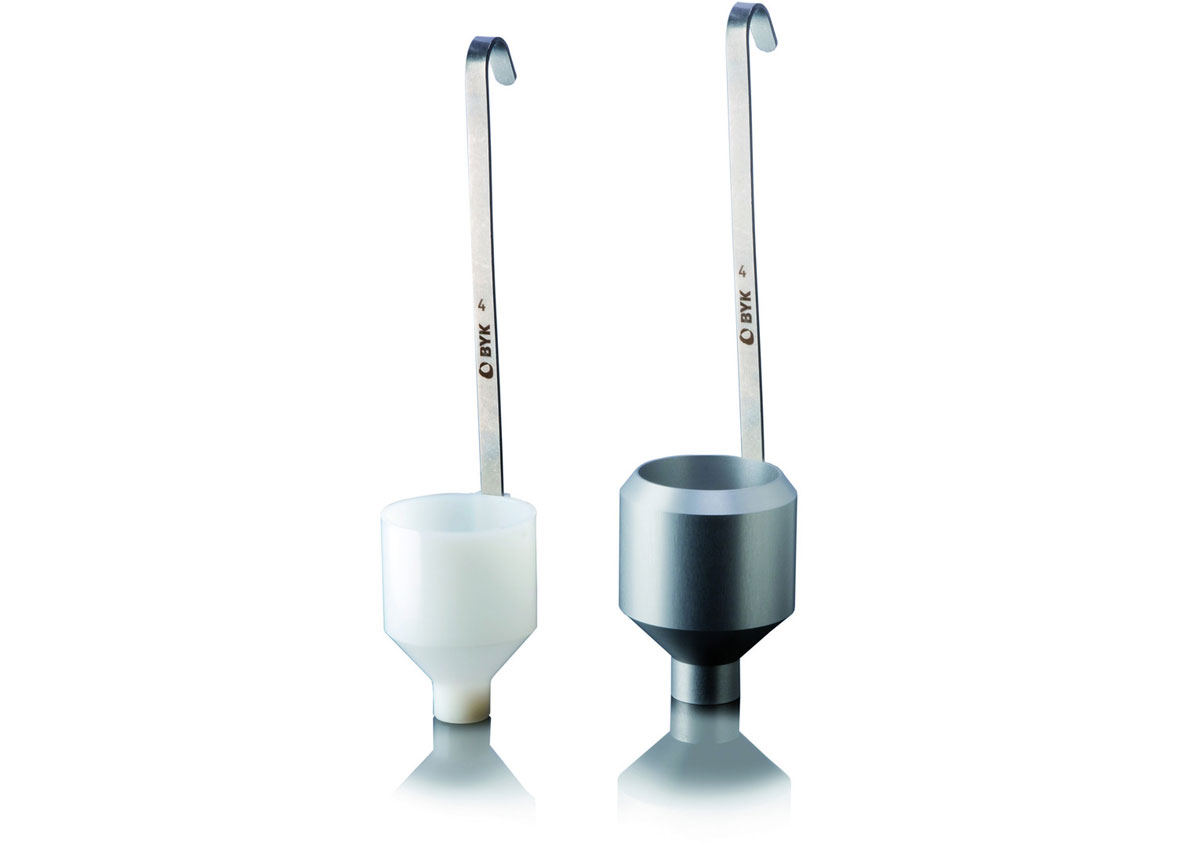

DIN/ISO Dip Cups have a simple, durable, and easy-to-use design for laboratories, workshops, and production areas. These cups are available in DIN and ISO types, with inner dimensions according to DIN 53211 or ISO 2431, a protected loop handle for safer handling, and a stainless steel orifice to support consistent measurement results. This product is suitable for quick viscosity checks on paints, coatings, varnishes, inks, resins, lacquers, adhesives, and similar liquid materials.
| Applications | Product | Product Information | Information Link |
| Viscosity measurement, DIN cup viscosity testing, ISO cup viscosity testing, dip cup measurement, efflux time measurement, paint viscosity control, coating viscosity control, ink viscosity testing, varnish testing, lacquer testing, adhesive testing, resin evaluation, flow behavior evaluation, laboratory quality control, workshop inspection, production inspection, formulation adjustment, formulation comparison, batch comparison, DIN 53211, and ISO 2431 testing | DIN/ISO Dip Cups | BYK-Gardner viscosity cup for quick and approximate efflux time determination of paints and similar liquids. Available in DIN and ISO types, with inner dimensions according to DIN 53211 / ISO 2431, protected loop handle, and stainless steel orifice. Suitable for daily viscosity checks, quality control, production inspection, and material adjustment before application. | View Information |
