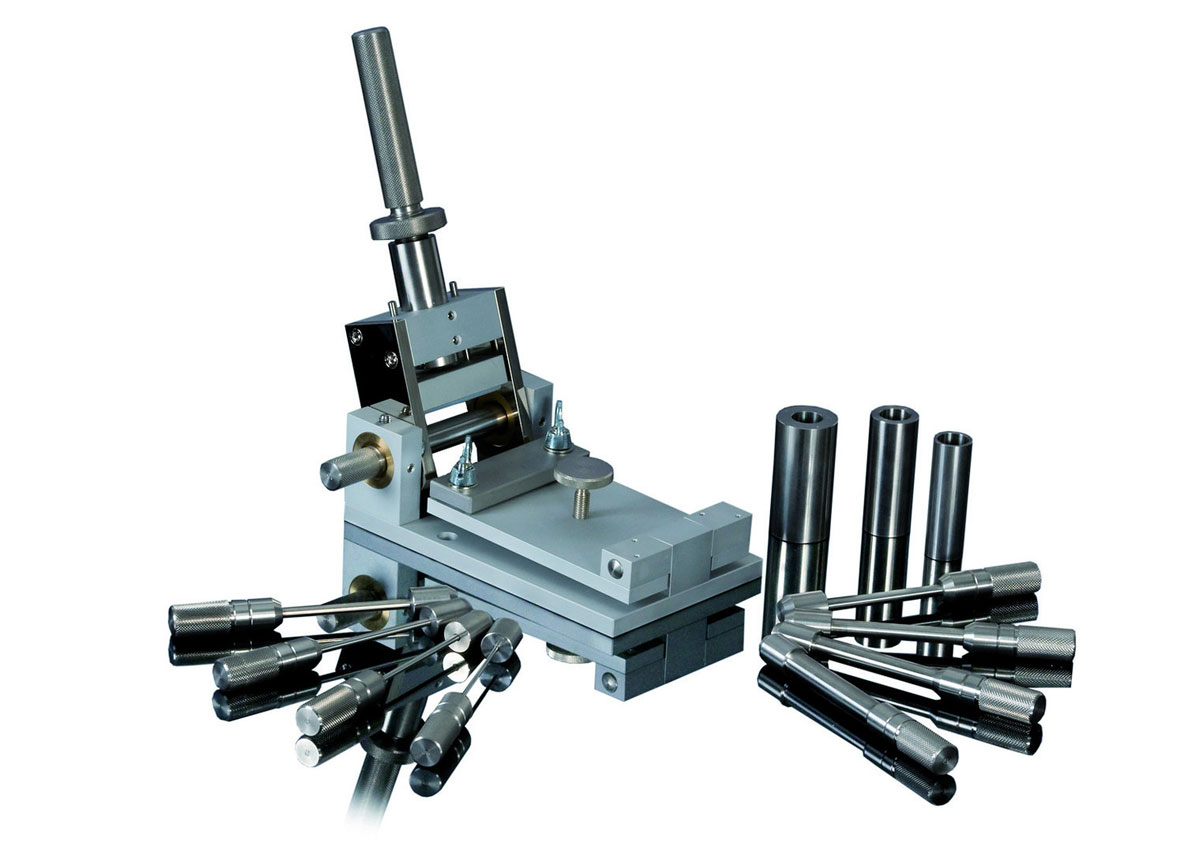

Cylindrical Mandrel Tester
Cylindrical Mandrel Tester is a BYK-Gardner testing instrument used to evaluate coating flexibility, elongation, and adhesion under bending stress. This instrument helps users assess whether coatings, paints, varnishes, or protective layers can follow substrate deformation without cracking, flaking, or losing adhesion.
In cylindrical mandrel testing, a coated panel is bent over a cylindrical rod with a defined diameter. After bending, the coating surface is visually inspected for cracking, flaking, delamination, or other film damage. This method can be used as a pass/fail test with one specified mandrel size, or repeated using progressively smaller mandrels to determine the smallest diameter before coating failure occurs.
Cylindrical Mandrel Tester is available in ISO and ASTM versions to match different testing requirements. The ISO version uses a set of stainless steel mandrels with diameters of 2, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25, and 32 mm, while the ASTM version uses rod diameters in inches. This instrument is suitable for architectural coatings, industrial coatings, automotive coatings, protective coatings, powder coatings, varnishes, coated metal panels, and materials requiring coating flexibility evaluation according to ASTM D522 and ISO 1519.
| Applications | Product | Product Information | Information Link |
| Flexibility testing, bend testing, cylindrical mandrel bend test, coating elongation evaluation, coating adhesion under bending stress, cracking evaluation, flaking evaluation, delamination inspection, architectural coatings, industrial coatings, automotive coatings, protective coatings, powder coatings, varnishes, coated metal panels, laboratory quality control, R&D testing, supplier approval, batch comparison, ASTM D522, and ISO 1519 | Cylindrical Mandrel Tester | BYK-Gardner instrument for testing coating flexibility and elongation by bending a coated panel over a cylindrical mandrel with a defined diameter. Can be used as a pass/fail test or to determine the smallest mandrel size before coating cracking or detachment occurs. Supports ASTM D522 and ISO 1519 standards with ISO and ASTM version options. | View Information |
