Vacuum Dissolvers

PT Jaya Warindo Abadi (JWA) is the authorized distributor in Indonesia for VMA-Getzmann DISPERMAT® production vacuum dissolvers. These systems are designed for de-aeration — removing air bubbles and dissolved gases — and for processing products containing volatile solvents. Manufactured in Germany since 1972, all systems comply with EC Machinery Directive 2006/42/EG.

Vacuum technology enables processing of pasty or liquid products without air entrapment, resulting in bubble-free end products, improved appearance, reduced waste, and enhanced quality. Key features include a vacuum-tight cover with sight glass, integrated lamp, charging port, vacuum sensors, pumps up to 250 m?3;/h, and optional heating or cooling.

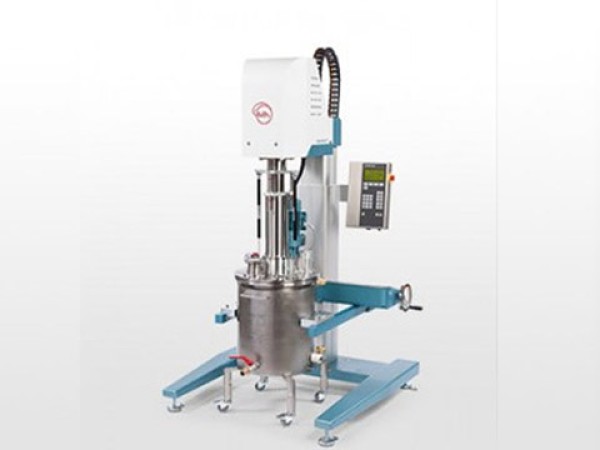

Vacuum dissolvers (SCV Series)
DISPERMAT® SCV4 (15-22 kW, 30-600 L, up to 750 L container, H4 electric stand)
DISPERMAT® SCV5 (30-45 kW, 80-1,000 L, up to 1,250 L container, BK5 electric stand)
DISPERMAT® SCV6 (45-55 kW, 400-2,000 L, up to 2,500 L container, T6 hydraulic stand)

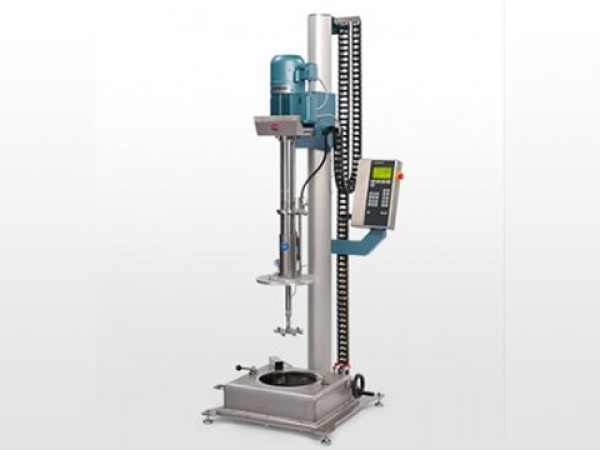

Vacuum dissolvers with scraper (SCVA Series)
DISPERMAT® SCVA4 (15-22 kW, spring-pressure scraper for high-viscosity non-flowing substances)
DISPERMAT® SCVA5 (30-45 kW, continuous wall wiping for pastes, sealants, adhesives)
DISPERMAT® SCVA6 (45-55 kW, exchangeable scraper arms for various container sizes)

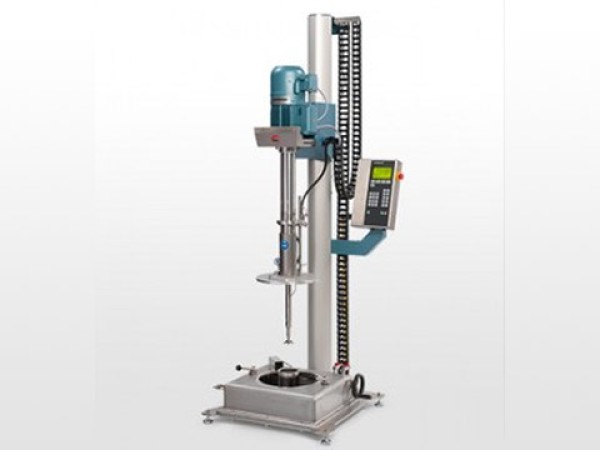

ATEX vacuum dissolvers (SCV-EX Series)
DISPERMAT® SCV4-EX, SCV5-EX, SCV6-EX — ATEX Zone 0/1/2 certified (II 2G Ex h IIB T3 Gb) for hazardous environments with flammable solvents. Same power ranges and volumes as SCV series.

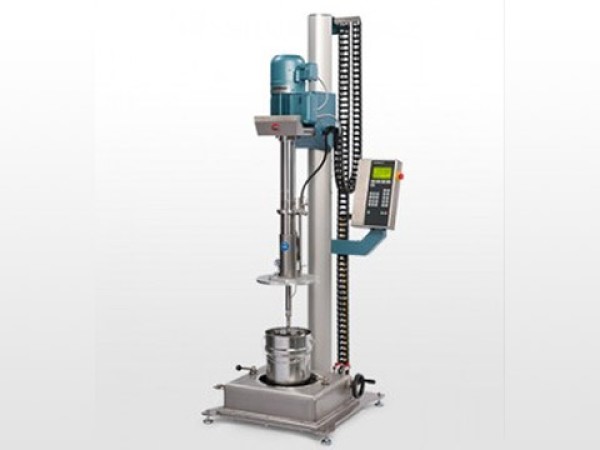

ATEX vacuum dissolvers with scraper (SCVA-EX Series)
DISPERMAT® SCVA4-EX, SCVA5-EX, SCVA6-EX — ATEX certified with integrated scraper system, combining explosion protection with high-viscosity vacuum processing.

Height adjustment is possible even under vacuum. All units support modular quick-change systems (SRH4/SRB5 rotor-stator homogenizers) and control options: SC, C3, or PLC with WINDISP© 7 software compatibility.
