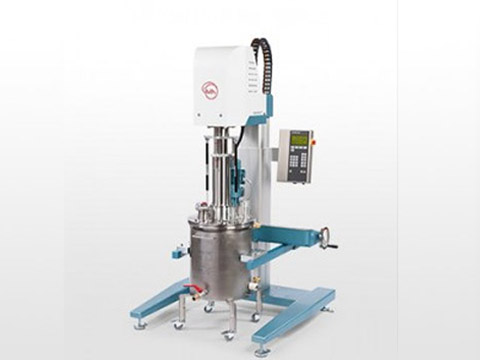

DISPERMAT® SCV Series Production Vacuum Dissolvers
VMA-Getzmann DISPERMAT® SCV series are production vacuum dissolvers designed for bubble-free dispersion of paints, coatings, inks, adhesives, sealants, and chemical products under vacuum. Manufactured in Germany since 1972, these systems enable de-aeration — the removal of air bubbles and dissolved gases — and processing of products containing volatile solvents. All systems comply with EC Machinery Directive 2006/42/EG and feature electric or hydraulic height adjustment, integrated safety devices, and multiple control technology options (C, SC, or PLC). Vacuum pumps up to 250 m?3;/h with optional heating or cooling capabilities are available.
Key advantages of the DISPERMAT® SCV series include: vacuum-tight cover with sight glass for process observation, integrated LED lamp for illumination of the dispersion process, product feed system as standard, PT100 temperature sensor option, vacuum sensor connections, and height adjustment of dispersion tool possible even under vacuum. Optional scraper system (SCVA) for high-viscosity products and ATEX explosion-proof version (SCV-EX) for hazardous environments are available.
DISPERMAT® SCV4 Production Vacuum Dissolver
The DISPERMAT® SCV4 is a production vacuum dissolver for product quantities from 30 to 600 liters, available for container sizes up to 750 liters. Power options: 15 kW or 22 kW, speed range 100-2,200 rpm. Features H4 compact stand with electric height adjustment, integrated vacuum cover with sight glass and LED lamp, and vacuum-tight design for bubble-free dispersion. Compatible with SRH4 rotor-stator homogenizer via modular quick-change system. Optional scraper system (SCVA4), vacuum pump with cooling/heating, and ATEX explosion-proof version (SCV4-EX) available.
DISPERMAT® SCV5 Production Vacuum Dissolver
The DISPERMAT® SCV5 is a production vacuum dissolver for product quantities from 80 to 1,000 liters, available for container sizes up to 1,250 liters. Power options: 30 kW, 37 kW, or 45 kW, speed range 100-1,270 rpm. Features BK5 stand with integrated electric height adjustment, robust design, integrated vacuum cover with sight glass and LED lamp, and vacuum-tight design for bubble-free dispersion. Compatible with SRB5 rotor-stator homogenizer. Optional scraper system (SCVA5), vacuum pump, and ATEX explosion-proof version (SCV5-EX) available.
DISPERMAT® SCV6 Production Vacuum Dissolver
The DISPERMAT® SCV6 is a production vacuum dissolver for product quantities from 400 to 2,000 liters, available for container sizes up to 2,500 liters. Power options: 45 kW or 55 kW, speed range 100-985 rpm. Features T6 hydraulic stand for robust hydraulic height adjustment, integrated vacuum cover with sight glass and LED lamp, and vacuum-tight design for bubble-free dispersion. Optional scraper system (SCVA6), vacuum pump, and ATEX explosion-proof version (SCV6-EX) available. Ideal for large-scale vacuum dispersion applications requiring highest power and volume.
Product Specifications
| Applications | Product | Product Information | Tautan Informasi |
|---|---|---|---|
| Paints & varnishes requiring de-aeration, Coatings (bubble-free application), Printing inks (solvent-based), Adhesives & sealants (solvent-free formulations), Chemical manufacturing with volatile solvents, Pharmaceuticals (solvent-based), Electronics materials (bubble-free coatings), Any application requiring de-aeration or processing of volatile solvents under vacuum | DISPERMAT® SCV4 | Power: 15-22 kW Product volume: 30-600 L Container: up to 750 L Speed: 100-2,200 rpm Stand: H4 compact (electric) Torque: 101-215 Nm Vacuum: Up to 250 m?3;/h pump Features: Sight glass, LED lamp, PT100 option |
SCV4 Technical Details |
| Same as above — medium to large batch sizes | DISPERMAT® SCV5 | Power: 30-45 kW Product volume: 80-1,000 L Container: up to 1,250 L Speed: 100-1,270 rpm Stand: BK5 (electric) Torque: 436-657 Nm Vacuum: Up to 250 m?3;/h pump Features: Sight glass, LED lamp, PT100 option |
SCV5 Technical Details |
| Same as above — large to very large batch sizes, highest volume applications | DISPERMAT® SCV6 | Power: 45-55 kW Product volume: 400-2,000 L Container: up to 2,500 L Speed: 100-985 rpm Stand: T6 (hydraulic) Torque: 876-1,069 Nm Vacuum: Up to 250 m?3;/h pump Features: Sight glass, LED lamp, PT100 option |
SCV6 Technical Details |
Optional features available for all SCV series: scraper system for high-viscosity products (SCVA4, SCVA5, SCVA6), ATEX explosion-proof design (SCV4-EX, SCV5-EX, SCV6-EX), combined vacuum + scraper (SCVA4-EX, SCVA5-EX, SCVA6-EX), and modular quick-change systems (rotor-stator homogenizer). Control technology options: C, SC, or PLC. Heating/cooling capabilities available for vacuum containers.
