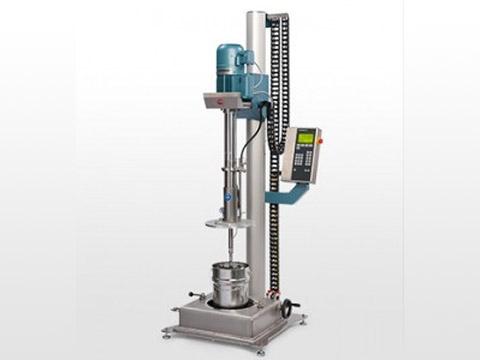

DISPERMAT® SCVA-EX Series ATEX Production Vacuum Dissolvers with Scraper
VMA-Getzmann DISPERMAT® SCVA-EX series are explosion-proof production vacuum dissolvers equipped with integrated scraper systems, certified for hazardous environments. These systems combine vacuum de-aeration, ATEX explosion protection, and heavy-duty scraper technology — specifically designed for processing high-viscosity, non-flowing hazardous materials such as solvent-based pastes, flammable sealants, and volatile adhesives under vacuum. All systems comply with ATEX Directive 2014/34/EU — protection class II 2G Ex h IIB T3 Gb for Zone 0/1/2 — and EC Machinery Directive 2006/42/EG. Vacuum pumps up to 250 m?3;/h with optional heating or cooling capabilities are available.
Key advantages of the DISPERMAT® SCVA-EX series include: integrated ATEX explosion-proof safety devices, separate control cabinet located outside the hazardous area, central container clamping system for secure operation, working height monitoring of the dispersion tool, vacuum-tight cover with sight glass for process observation under vacuum, integrated LED lamp for illumination, product feed system as standard, PT100 temperature sensor option, and height adjustment of dispersion tool possible even under vacuum. The integrated spring-pressure scraper arm continuously wipes the container wall — eliminating dead zones and ensuring complete mixing and heat transfer even with highly viscous, non-flowing hazardous substances under vacuum. Scraper arms are exchangeable for different container sizes.
DISPERMAT® SCVA4-EX ATEX Production Vacuum Dissolver with Scraper
The DISPERMAT® SCVA4-EX is an explosion-proof production vacuum dissolver with scraper system for product quantities from 30 to 600 liters, available for container sizes up to 750 liters. Power options: 15 kW or 22 kW, speed range 100-2,200 rpm. Features H4 compact stand with electric height adjustment, integrated vacuum cover with sight glass and LED lamp, spring-pressure scraper arm exchangeable for different container sizes, vacuum-tight design for bubble-free dispersion of high-viscosity products, and ATEX protection class II 2G Ex h IIB T3 Gb for Zone 0/1/2. Compatible with SRH4 rotor-stator homogenizer via modular quick-change system.
DISPERMAT® SCVA5-EX ATEX Production Vacuum Dissolver with Scraper
The DISPERMAT® SCVA5-EX is an explosion-proof production vacuum dissolver with scraper system for product quantities from 80 to 1,000 liters, available for container sizes up to 1,250 liters. Power options: 30 kW, 37 kW, or 45 kW, speed range 100-1,270 rpm. Features BK5 stand with integrated electric height adjustment, robust design, heavy-duty scraper system for high-viscosity hazardous products under vacuum, integrated vacuum cover with sight glass and LED lamp, vacuum-tight design for bubble-free dispersion, and ATEX protection class II 2G Ex h IIB T3 Gb for Zone 0/1/2. Compatible with SRB5 rotor-stator homogenizer.
DISPERMAT® SCVA6-EX ATEX Production Vacuum Dissolver with Scraper
The DISPERMAT® SCVA6-EX is an explosion-proof production vacuum dissolver with scraper system for product quantities from 400 to 2,000 liters, available for container sizes up to 2,500 liters. Power options: 45 kW or 55 kW, speed range 100-985 rpm. Features T6 hydraulic stand for robust hydraulic height adjustment, heavy-duty scraper system with exchangeable spring-pressure scraper arms, integrated vacuum cover with sight glass and LED lamp, vacuum-tight design for bubble-free dispersion of highest viscosity hazardous products, and ATEX protection class II 2G Ex h IIB T3 Gb for Zone 0/1/2. Ideal for large-scale hazardous environment vacuum applications requiring both de-aeration and continuous wall wiping.
Product Specifications
| Applications | Product | Product Information | Tautan Informasi |
|---|---|---|---|
| High-viscosity paints & varnishes with flammable solvents requiring de-aeration, Pigments & additives (solvent-based paste concentrates), Printing inks (high-viscosity flammable solvent-based), Adhesives & sealants (solvent-based structural adhesives, flammable non-flowing sealants), Chemical manufacturing with volatile compounds, Pharmaceuticals (high-viscosity solvent-based), Petrochemical applications, Any hazardous environment requiring ATEX Zone 0/1/2 certification for vacuum dispersion of high-viscosity, non-flowing flammable materials | DISPERMAT® SCVA4-EX | Power: 15-22 kW Product volume: 30-600 L Container: up to 750 L Speed: 100-2,200 rpm Stand: H4 compact (electric) Torque: 101-215 Nm Vacuum: Up to 250 m?3;/h pump ATEX: II 2G Ex h IIB T3 Gb (Zone 0/1/2) Scraper: Spring-pressure, exchangeable arms Features: Sight glass, LED lamp, PT100 option, separate control cabinet |
SCVA4-EX Technical Details |
| Same as above — medium to large batch sizes | DISPERMAT® SCVA5-EX | Power: 30-45 kW Product volume: 80-1,000 L Container: up to 1,250 L Speed: 100-1,270 rpm Stand: BK5 (electric) Torque: 436-657 Nm Vacuum: Up to 250 m?3;/h pump ATEX: II 2G Ex h IIB T3 Gb (Zone 0/1/2) Scraper: Spring-pressure, heavy-duty Features: Sight glass, LED lamp, PT100 option, separate control cabinet |
SCVA5-EX Technical Details |
| Same as above — large to very large batch sizes, highest viscosity hazardous applications | DISPERMAT® SCVA6-EX | Power: 45-55 kW Product volume: 400-2,000 L Container: up to 2,500 L Speed: 100-985 rpm Stand: T6 (hydraulic) Torque: 876-1,069 Nm Vacuum: Up to 250 m?3;/h pump ATEX: II 2G Ex h IIB T3 Gb (Zone 0/1/2) Scraper: Spring-pressure, heavy-duty, exchangeable Features: Sight glass, LED lamp, PT100 option, separate control cabinet |
SCVA6-EX Technical Details |
Optional features available for all SCVA-EX series: modular quick-change systems (rotor-stator homogenizer). Control technology options: C, SC, or PLC. Heating/cooling capabilities available for vacuum containers. Separate control cabinet located outside hazardous area.
