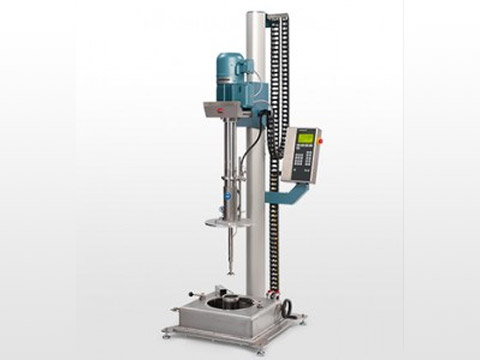

DISPERMAT® SCV-EX Series ATEX Production Vacuum Dissolvers
VMA-Getzmann DISPERMAT® SCV-EX series are explosion-proof production vacuum dissolvers certified for hazardous environments. These systems combine vacuum de-aeration with ATEX explosion protection, specifically designed for processing flammable solvents, volatile chemicals, and explosive atmospheres under vacuum. All systems comply with ATEX Directive 2014/34/EU — protection class II 2G Ex h IIB T3 Gb for Zone 0/1/2 — and EC Machinery Directive 2006/42/EG. Vacuum pumps up to 250 m?3;/h with optional heating or cooling capabilities are available.
Key advantages of the DISPERMAT® SCV-EX series include: integrated ATEX explosion-proof safety devices, separate control cabinet located outside the hazardous area, central container clamping system for secure operation, working height monitoring of the dispersion tool, vacuum-tight cover with sight glass for process observation under vacuum, integrated LED lamp for illumination, product feed system as standard, PT100 temperature sensor option, and height adjustment of dispersion tool possible even under vacuum. Optional scraper system (SCVA-EX) for high-viscosity products under vacuum available.
DISPERMAT® SCV4-EX ATEX Production Vacuum Dissolver
The DISPERMAT® SCV4-EX is an explosion-proof production vacuum dissolver for product quantities from 30 to 600 liters, available for container sizes up to 750 liters. Power options: 15 kW or 22 kW, speed range 100-2,200 rpm. Features H4 compact stand with electric height adjustment, integrated vacuum cover with sight glass and LED lamp, vacuum-tight design for bubble-free dispersion, and ATEX protection class II 2G Ex h IIB T3 Gb for Zone 0/1/2. Compatible with SRH4 rotor-stator homogenizer via modular quick-change system. Optional scraper system (SCVA4-EX) available.
DISPERMAT® SCV5-EX ATEX Production Vacuum Dissolver
The DISPERMAT® SCV5-EX is an explosion-proof production vacuum dissolver for product quantities from 80 to 1,000 liters, available for container sizes up to 1,250 liters. Power options: 30 kW, 37 kW, or 45 kW, speed range 100-1,270 rpm. Features BK5 stand with integrated electric height adjustment, robust design, integrated vacuum cover with sight glass and LED lamp, vacuum-tight design for bubble-free dispersion, and ATEX protection class II 2G Ex h IIB T3 Gb for Zone 0/1/2. Compatible with SRB5 rotor-stator homogenizer. Optional scraper system (SCVA5-EX) available.
DISPERMAT® SCV6-EX ATEX Production Vacuum Dissolver
The DISPERMAT® SCV6-EX is an explosion-proof production vacuum dissolver for product quantities from 400 to 2,000 liters, available for container sizes up to 2,500 liters. Power options: 45 kW or 55 kW, speed range 100-985 rpm. Features T6 hydraulic stand for robust hydraulic height adjustment, integrated vacuum cover with sight glass and LED lamp, vacuum-tight design for bubble-free dispersion, and ATEX protection class II 2G Ex h IIB T3 Gb for Zone 0/1/2. Ideal for large-scale hazardous environment vacuum applications requiring highest power and volume. Optional scraper system (SCVA6-EX) available.
Product Specifications
| Applications | Product | Product Information | Tautan Informasi |
|---|---|---|---|
| Paints & varnishes with flammable solvents requiring de-aeration, Coatings for hazardous environments, Printing inks (solvent-based volatile), Adhesives & sealants (solvent-based formulations), Chemical manufacturing with volatile compounds, Pharmaceuticals (solvent-based), Petrochemical applications, Any hazardous environment requiring ATEX Zone 0/1/2 certification for vacuum dispersion of flammable solvents or volatile chemicals | DISPERMAT® SCV4-EX | Power: 15-22 kW Product volume: 30-600 L Container: up to 750 L Speed: 100-2,200 rpm Stand: H4 compact (electric) Torque: 101-215 Nm Vacuum: Up to 250 m?3;/h pump ATEX: II 2G Ex h IIB T3 Gb (Zone 0/1/2) Features: Sight glass, LED lamp, PT100 option, separate control cabinet |
SCV4-EX Technical Details |
| Same as above — medium to large batch sizes | DISPERMAT® SCV5-EX | Power: 30-45 kW Product volume: 80-1,000 L Container: up to 1,250 L Speed: 100-1,270 rpm Stand: BK5 (electric) Torque: 436-657 Nm Vacuum: Up to 250 m?3;/h pump ATEX: II 2G Ex h IIB T3 Gb (Zone 0/1/2) Features: Sight glass, LED lamp, PT100 option, separate control cabinet |
SCV5-EX Technical Details |
| Same as above — large to very large batch sizes, highest volume hazardous applications | DISPERMAT® SCV6-EX | Power: 45-55 kW Product volume: 400-2,000 L Container: up to 2,500 L Speed: 100-985 rpm Stand: T6 (hydraulic) Torque: 876-1,069 Nm Vacuum: Up to 250 m?3;/h pump ATEX: II 2G Ex h IIB T3 Gb (Zone 0/1/2) Features: Sight glass, LED lamp, PT100 option, separate control cabinet |
SCV6-EX Technical Details |
Optional features available for all SCV-EX series: scraper system for high-viscosity products under vacuum (SCVA4-EX, SCVA5-EX, SCVA6-EX) and modular quick-change systems (rotor-stator homogenizer). Control technology options: C, SC, or PLC. Heating/cooling capabilities available for vacuum containers. Separate control cabinet located outside hazardous area.
