Dissolvers

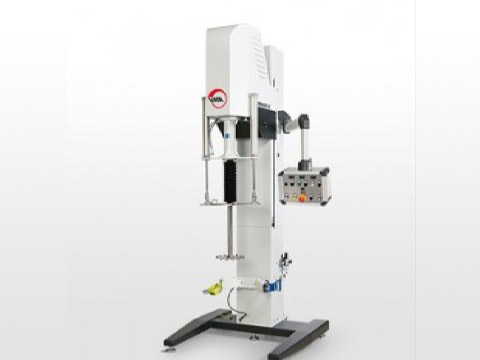

DISPERMAT® SC Series Production Dissolvers

VMA-Getzmann DISPERMAT® SC series production dissolvers are high-performance dispersing machines designed for industrial-scale manufacturing of paints, coatings, inks, adhesives, chemicals, and related industries. Manufactured in Germany since 1972, these dissolvers deliver reliable, repeatable, and efficient mixing and dispersing results for product quantities ranging from pilot plant to full production scale. All systems comply with EC Machinery Directive 2006/42/EG and feature electric or hydraulic height adjustment, integrated safety devices, and multiple control technology options (CN, C, SC, or PLC).

Key advantages of the DISPERMAT® SC series include: modular quick-change systems for converting to basket mills, vacuum systems, or rotor-stator homogenizers; ATEX explosion-proof options for hazardous environments; scraper system options for high-viscosity products; and compatibility with WINDISP© 7 software for process documentation and quality control. The robust stands (H4 compact, BK5, or T6 hydraulic) ensure stable operation even with large container volumes up to 2,500 liters.

DISPERMAT® SC4 Production Dissolver
The DISPERMAT® SC4 is a multipurpose production dissolver for product quantities from 30 to 600 liters, available for container sizes up to 750 liters. Power options: 15 kW or 22 kW, speed range 100-2,200 rpm. Features H4 compact stand with electric height adjustment, integrated cover with product feed system, and compatibility with TORUSMILL® TML100/250 basket mill, VH4 vacuum dispersion system, and SRH4 rotor-stator homogenizer via modular quick-change systems. Optional ATEX explosion-proof version available (SC4-EX).

DISPERMAT® SC5 Production Dissolver
The DISPERMAT® SC5 is a multipurpose production dissolver for product quantities from 80 to 1,000 liters, available for container sizes up to 1,250 liters. Power options: 30 kW, 37 kW, or 45 kW, speed range 100-1,270 rpm. Features BK5 stand with integrated electric height adjustment, robust design focused on functional and economic aspects. Optional scraper system (SCA5) for high-viscosity products, vacuum design (SCV5), and ATEX explosion-proof version (SC5-EX). Compatible with SRB5 rotor-stator homogenizer.

DISPERMAT® SC6 Production Dissolver
The DISPERMAT® SC6 is a multipurpose production dissolver for product quantities from 400 to 2,000 liters, available for container sizes up to 2,500 liters. Power options: 45 kW or 55 kW, speed range 100-985 rpm. Features T6 hydraulic stand for robust hydraulic height adjustment. Optional scraper system (SCA6) for high-viscosity and non-flowing substances, vacuum design (SCV6), and ATEX explosion-proof version (SC6-EX). The integrated spring-pressure scraper arm ensures continuous wall wiping for efficient mixing and heat transfer.
