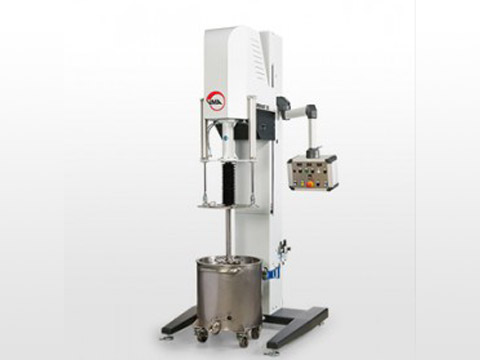

DISPERMAT® SC-EX Series ATEX Production Dissolvers
VMA-Getzmann DISPERMAT® SC-EX series are explosion-proof production dissolvers certified for hazardous environments. Designed specifically for industrial dispersion of flammable solvents, volatile chemicals, and explosive atmospheres, these dissolvers comply with ATEX Directive 2014/34/EU — protection class II 2G Ex h IIB T3 Gb for Zone 0/1/2. All systems also comply with EC Machinery Directive 2006/42/EG and feature electric or hydraulic height adjustment, integrated safety devices, and multiple control technology options (C, SC, or PLC).
Key advantages of the DISPERMAT® SC-EX series include: integrated explosion-proof safety devices, separate control cabinet located outside the hazardous area, central container clamping system for secure operation, and working height monitoring of the dispersion tool. Optional scraper system (SCA-EX) for high-viscosity products, vacuum design (SCV-EX), and combined vacuum+scraper (SCVA-EX) are available. Compatible with modular quick-change systems including TORUSMILL® basket mills, VH4 vacuum systems, and SRH4/SRB5 rotor-stator homogenizers.
DISPERMAT® SC4-EX ATEX Production Dissolver
The DISPERMAT® SC4-EX is an explosion-proof production dissolver for product quantities from 30 to 600 liters, available for container sizes up to 750 liters. Power options: 15 kW or 22 kW, speed range 100-2,200 rpm. Features H4 compact stand with electric height adjustment, integrated cover with product feed system, and ATEX protection class II 2G Ex h IIB T3 Gb. Compatible with TORUSMILL® TML100/250 basket mill and SRH4 rotor-stator homogenizer via modular quick-change systems. Optional scraper system (SCA4-EX) and vacuum design (SCV4-EX) available.
DISPERMAT® SC5-EX ATEX Production Dissolver
The DISPERMAT® SC5-EX is an explosion-proof production dissolver for product quantities from 80 to 1,000 liters, available for container sizes up to 1,250 liters. Power options: 30 kW, 37 kW, or 45 kW, speed range 100-1,270 rpm. Features BK5 stand with integrated electric height adjustment, robust design, and ATEX protection class II 2G Ex h IIB T3 Gb. Optional scraper system (SCA5-EX), vacuum design (SCV5-EX), and combined vacuum+scraper (SCVA5-EX) available. Compatible with SRB5 rotor-stator homogenizer.
DISPERMAT® SC6-EX ATEX Production Dissolver
The DISPERMAT® SC6-EX is an explosion-proof production dissolver for product quantities from 400 to 2,000 liters, available for container sizes up to 2,500 liters. Power options: 45 kW or 55 kW, speed range 100-985 rpm. Features T6 hydraulic stand for robust hydraulic height adjustment, and ATEX protection class II 2G Ex h IIB T3 Gb. Optional scraper system (SCA6-EX), vacuum design (SCV6-EX), and combined vacuum+scraper (SCVA6-EX) available. Ideal for hazardous environment applications requiring highest power and volume.
Product Specifications
| Applications | Product | Product Information | Tautan Informasi |
|---|---|---|---|
| Paints & varnishes with flammable solvents, Pigments & additives (solvent-borne), Printing inks (solvent-based), Adhesives & sealants (solvent-based), Chemical manufacturing with volatile compounds, Pharmaceuticals (solvent-based), Petrochemical applications, Any hazardous environment requiring ATEX Zone 0/1/2 certification | DISPERMAT® SC4-EX | Power: 15-22 kW Product volume: 30-600 L Container: up to 750 L Speed: 100-2,200 rpm Stand: H4 compact (electric) Torque: 101-215 Nm ATEX: II 2G Ex h IIB T3 Gb (Zone 0/1/2) |
SC4-EX Technical Details |
| DISPERMAT® SC5-EX | Power: 30-45 kW Product volume: 80-1,000 L Container: up to 1,250 L Speed: 100-1,270 rpm Stand: BK5 (electric) Torque: 436-657 Nm ATEX: II 2G Ex h IIB T3 Gb (Zone 0/1/2) |
SC5-EX Technical Details | |
| DISPERMAT® SC6-EX | Power: 45-55 kW Product volume: 400-2,000 L Container: up to 2,500 L Speed: 100-985 rpm Stand: T6 (hydraulic) Torque: 876-1,069 Nm ATEX: II 2G Ex h IIB T3 Gb (Zone 0/1/2) |
SC6-EX Technical Details |
Optional features available for all SC-EX series: scraper system for high-viscosity products (SCA4-EX, SCA5-EX, SCA6-EX), vacuum design (SCV4-EX, SCV5-EX, SCV6-EX), combined vacuum + scraper (SCVA4-EX, SCVA5-EX, SCVA6-EX), and modular quick-change systems (basket mill, rotor-stator homogenizer). Control technology options: C, SC, or PLC. Separate control cabinet located outside hazardous area.
